With the hike in electricity tariffs and the phenomenon of global warming, local families have turned to the use of solar water heaters. MySOLAR Sales and Marketing Sdn Bhd, a Malaysia based solar water heater manufacturer providing consumers with safe, energy-saving and environmentally friendly solar energy of water heater.
MySOLAR successfully improvise and combines the advantages of various solar water heaters brands and launched its unique series of durable solar water heater system, that is safe, energy & cost saving, convenient and environmentally friendly.
It is worth mentioning that, MySOLAR also one of the few companies which have one-stop research and development, production and sales of solar water heater manufacturers. Resolute installation & services that comes with a guarantee perfect after sales service and genuine parts are promised to satisfy consumer.
BENEFITS OF SOLAR WATER HEATERS
Safer usage & durable life spend. The system produce hot water by harvesting heat from the sun which then directly heats up the water in it, makes it less complicated in the design and electrocution-free during usage.
Reduced cost & usage of electricity. Solar energy is free, so you’ve only have to pay for the initial cost for the system installation, your monthly electric usage will reduce and cost of electricity will then decrease.
Lower carbon footprint & environmental friendly. Solar energy is an ecological friendly and renewable energy which can be reuse while reducing daily carbon emission which is one of the main causes of global warming.

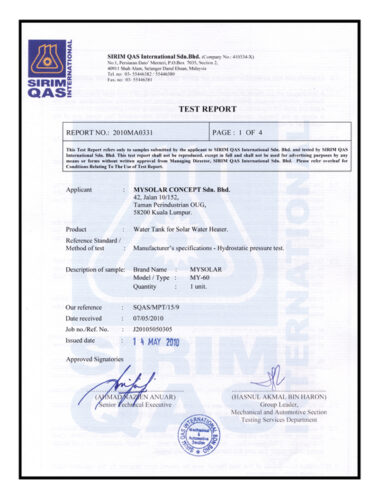

CERTIFICATES
PRODUCT DESCRIPTION
- High Density pressure injected polyurethane foam for maximum heat retention.
- Weatherproof outer casing in stucco aluminum.
- Larger collector panel for effective fast heating of hot water.
- Lightweight rigid structural casing made from top quality aluminum material.
- High performance copper / aluminum collector fin to increase heating rate.
- Copper riser tubes per panel for high heat transfer and full water flow.
- Stainless steel tank (Japan) provides excellent resistance to corrosion commonly found in hot water storage system.
- Back-up electrical heater (Italy) with resettable thermostat for safety.
- Two hot up riser water return pipe for higher efficiency and fast heating.
- Low iron solar glass for maximum transmission of solar radiation.
- Aluminum foil with high density polystyrene foam / rock wool to prevent heat loss.

THE PIPING SYSTEM & BENEFITS


MYSOLAR MY60 SERIES 1
- 60 gallons (276 litres)
- Made in Malaysia 🇲🇾
- Manufacturer
- 1 year Guarantee + 9 years Warranty
- 100% Rustproof
- 1.2mm Stainless Steel AISI 304
- Cylinder Diameter 468mm (Less shadow)
- 2 Hot Up Risers Tubes (Heat faster)
- 14 Copper Tubes
- Larges Panel 42sq/ft (High efficiency)
- 4 to 6 Pax
- UK 🇬🇧 ‘CONEX’ Fitting
- ITALY 🇮🇹 THERMOWATT Back Up Heater 3.0KW
- RMC Relief Valve Australia 🇦🇺 700kpa

MYSOLAR MY40 SERIES 3
- 40 gallons (180 litres)
- Made in Malaysia 🇲🇾
- Manufacturer
- 3 years Guarantee + 9 years Warranty
- 100% Rustproof
- 1.5mm Stainless Steel AISI 304
- Cylinder Diameter 468mm (Less shadow)
- 2 Hot Up Risers Tubes (Heat faster)
- 10 Copper Tubes (High efficiency)
- Larges Panel 21sq/ft
- 4 pax
- UK 🇬🇧 ‘CONEX’ Fitting
- ITALY 🇮🇹 THERMOWATT Back Up Heater 3.0KW
- RMC Relief Valve Australia 🇦🇺 850kpa

MYSOLAR MY60 SERIES 3
- 60 gallons (276 litres)
- Made in Malaysia 🇲🇾
- Manufacturer
- 3 years Guarantee + 9 years Warranty
- 100% Rustproof
- 1.5mm Stainless Steel AISI 304
- Cylinder Diameter 468mm (Less shadow)
- 2 Hot Up Risers Tubes (Heat faster)
- 20 Copper Tubes (High efficiency)
- Larges panel 42sq/ft
- 6 to 8 pax
- UK 🇬🇧 ‘CONEX’ Fitting
- ITALY 🇮🇹 THERMOWATT Back Up Heater 3.0KW
- RMC Relief Valve Australia 🇦🇺 850kpa
